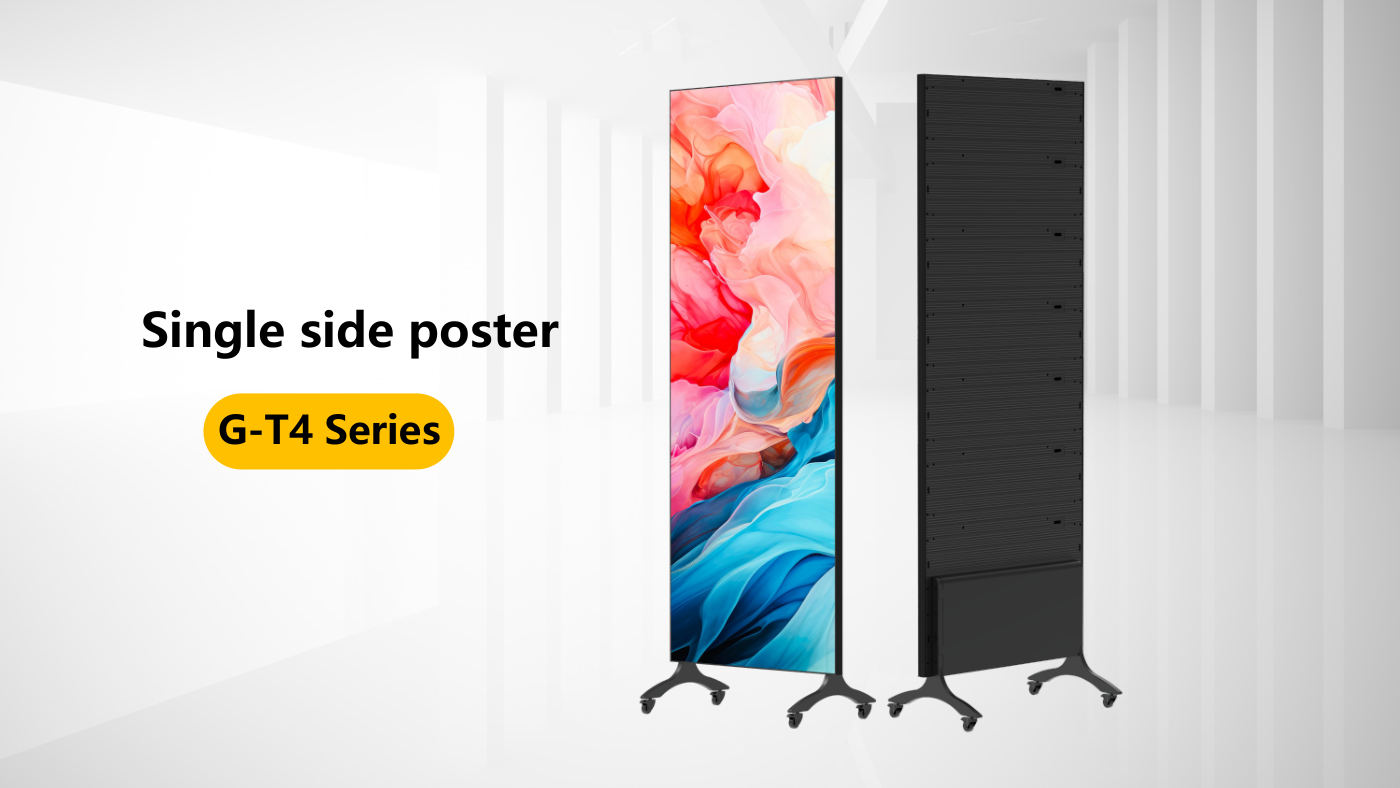

G-T4 Series LED Poster Display
A digital poster that sells from day one: wheel it in, plug it in, and control it from a phone.
Why teams choose the G-T4 Series
The G-T4 Series LED poster replaces printed signage with a 750×2000mm bright, animated display that needs no installation team — stand it on the floor, hang it, or splice several units into a seamless wall. Content loads over WiFi, LAN, HDMI or USB from a PC, phone or tablet, with both synchronous and asynchronous playback. Intelligent split-screen shows multiple content windows at once, and cloud cluster management controls hundreds of posters across every store from one dashboard. At 39.6kg with front maintenance and 15000:1 contrast, it is the fastest way for retail chains, hotels, banks and restaurants to turn foot traffic into revenue.
True plug-and-play
Floor stand, hoisting or wall placement with no structural work — powered on and playing in minutes.
Multi-screen splicing
Multiple posters splice seamlessly into one large canvas for storefronts and lobbies.
Cloud cluster control
Manage content on any number of posters in any number of locations from one cloud dashboard.
Smart split display
Multi-window playback shows video, price lists and promotions simultaneously.
Every input covered
WiFi, LAN, HDMI and USB with sync and async playback from PC, phone, pad or USB stick.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P1.25 | P1.5625 | P1.95 | P2.5 | P3.91 |
|---|---|---|---|---|---|
| LED Type | SMD1010 (GOB) | SMD1212 (GOB) | SMD1515 | SMD1515 | SMD1515 |
| Pixel Density (dots/m²) | 640,000 | 409,600 | 262,144 | 160,000 | 65,536 |
| Display Size (mm) | 750×2000×33 | 750×2000×33 | 750×2000×33 | 750×2000×33 | 750×2000×33 |
| Resolution (dots) | 600×1600 | 480×1280 | 384×1024 | 300×800 | 192×512 |
| Weight (kg) | 39.6 | 39.6 | 39.6 | 39.6 | 39.6 |
| Maintenance | Front | Front | Front | Front | Front |
| Brightness (nits) | 600 | 600 | 800 | 800 | 1000 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Max / Avg Power (W/m²) | 650 / 100–200 | 650 / 100–200 | 650 / 100–200 | 650 / 100–200 | 650 / 100–200 |
Typical applications
- Retail chains
- Cinemas
- Banks
- Hotels
- Restaurants
- Shopping malls
Quote the G-T4 Series for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
