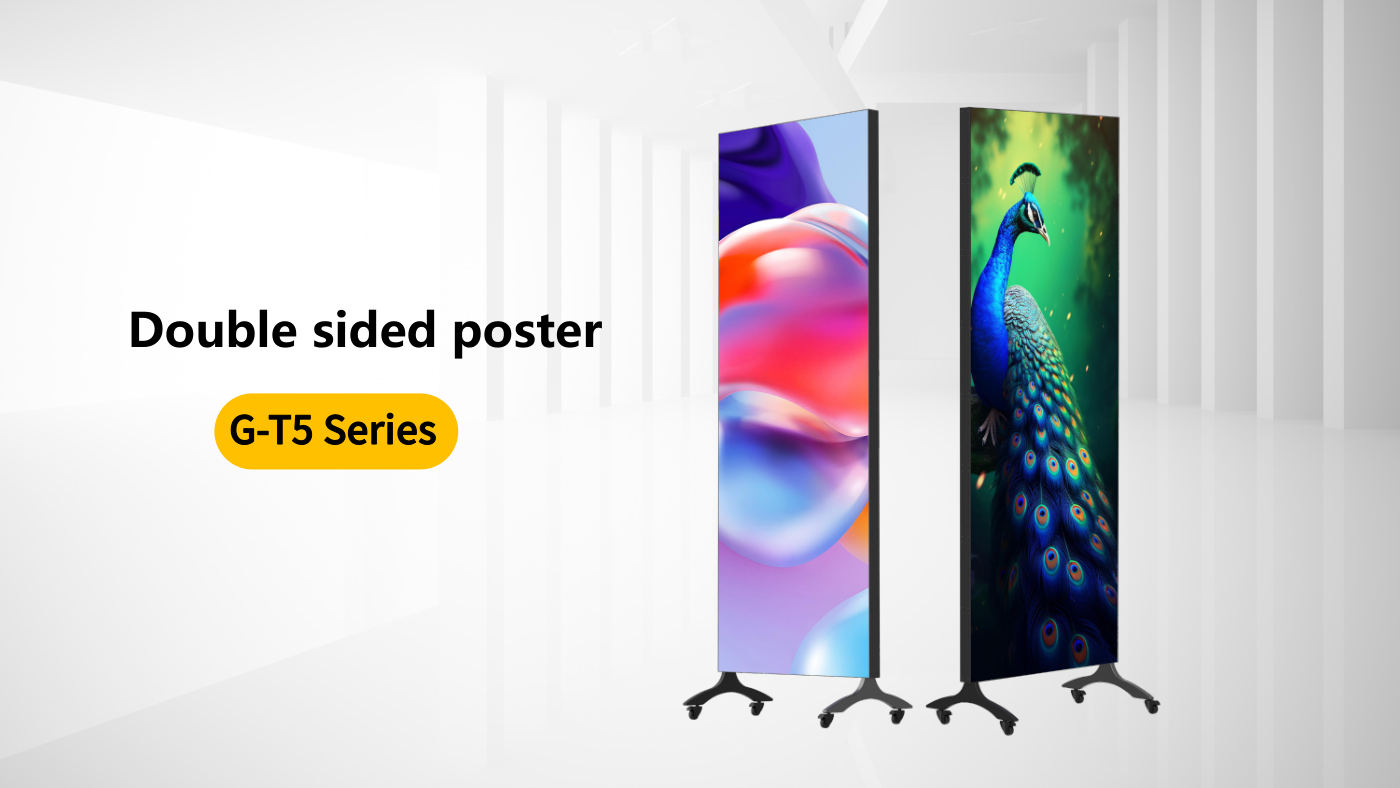

Why teams choose the G-T5 Series

Window placements face two audiences — shoppers inside and foot traffic outside — and the G-T5 Series serves both from a single 54mm-thin footprint. Each side can be configured with a different pixel pitch and different brightness, so the sun-facing side runs brighter while the interior side stays comfortable. Beyond the twin displays, the G-T5 carries the full G-series toolkit: WiFi/LAN/HDMI/USB inputs, sync and async playback, intelligent split-screen windows, seamless multi-unit splicing and cloud cluster management for chain-wide control. At 50.2kg with front maintenance, it doubles the impressions of every square meter of floor space it occupies.

Independent A/B sides

Different pixel pitches and brightness per side adapt to window glass, sunlight and interior conditions.

One footprint, two audiences

Serve in-store and street-side viewers simultaneously — double the media value per square meter.

Cloud cluster management

Centralized content control for all posters across all locations, anytime, anywhere.

Seamless splicing

Multiple double-sided units combine into larger runs for window walls.

Datasheet

Technical specifications

Factory datasheet values. Need the full PDF or a custom configuration? Request it here.

Pixel Pitch	P1.25	P1.5625	P1.95	P2.5	P3.91
LED Type	SMD1010 (GOB)	SMD1212 (GOB)	SMD1515	SMD1515	SMD1515
Pixel Density (dots/m²)	640,000	409,600	262,144	160,000	65,536
Display Size (mm)	750×2000×54	750×2000×54	750×2000×54	750×2000×54	750×2000×54
Resolution (dots)	600×1600	480×1280	384×1024	300×800	192×512
Weight (kg)	50.2	50.2	50.2	50.2	50.2
Maintenance	Front	Front	Front	Front	Front
Brightness (nits)	600	600	800	800	1000
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Contrast Ratio	15000:1	15000:1	15000:1	15000:1	15000:1
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Max / Avg Power (W/m²)	650 / 100–200	650 / 100–200	650 / 100–200	650 / 100–200	650 / 100–200
