Why teams choose the Double-Sided Series

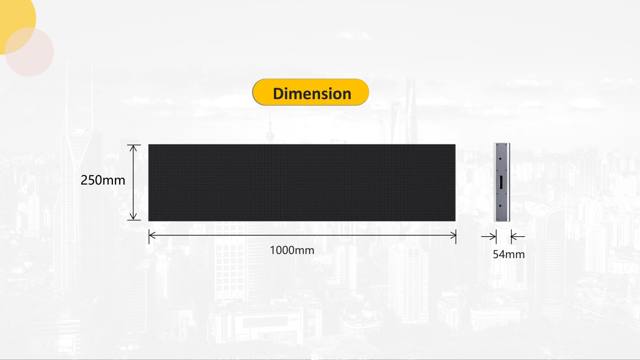

The Double-Sided Series is a hanging LED display that shows content on both faces from a body only 54mm thick, in cabinet widths of 500, 750 and 1000mm. Dual-side co-display or independent A/B content gives storefronts, pharmacies, jewelers and transit spaces 360° visibility from a ceiling-hung strip. Hard-connected modules attach by magnetic columns with no wires — modules hot-swap from the front by hand, and the 5V line design keeps failure rates extremely low. The all-aluminum body dissipates heat fast without fans. Cabinets splice into long runs for overhead wayfinding and window banners that read clearly from both directions.

Dual-side display

Co-display the same content or run independent A/B sides — 360° all-round visibility.

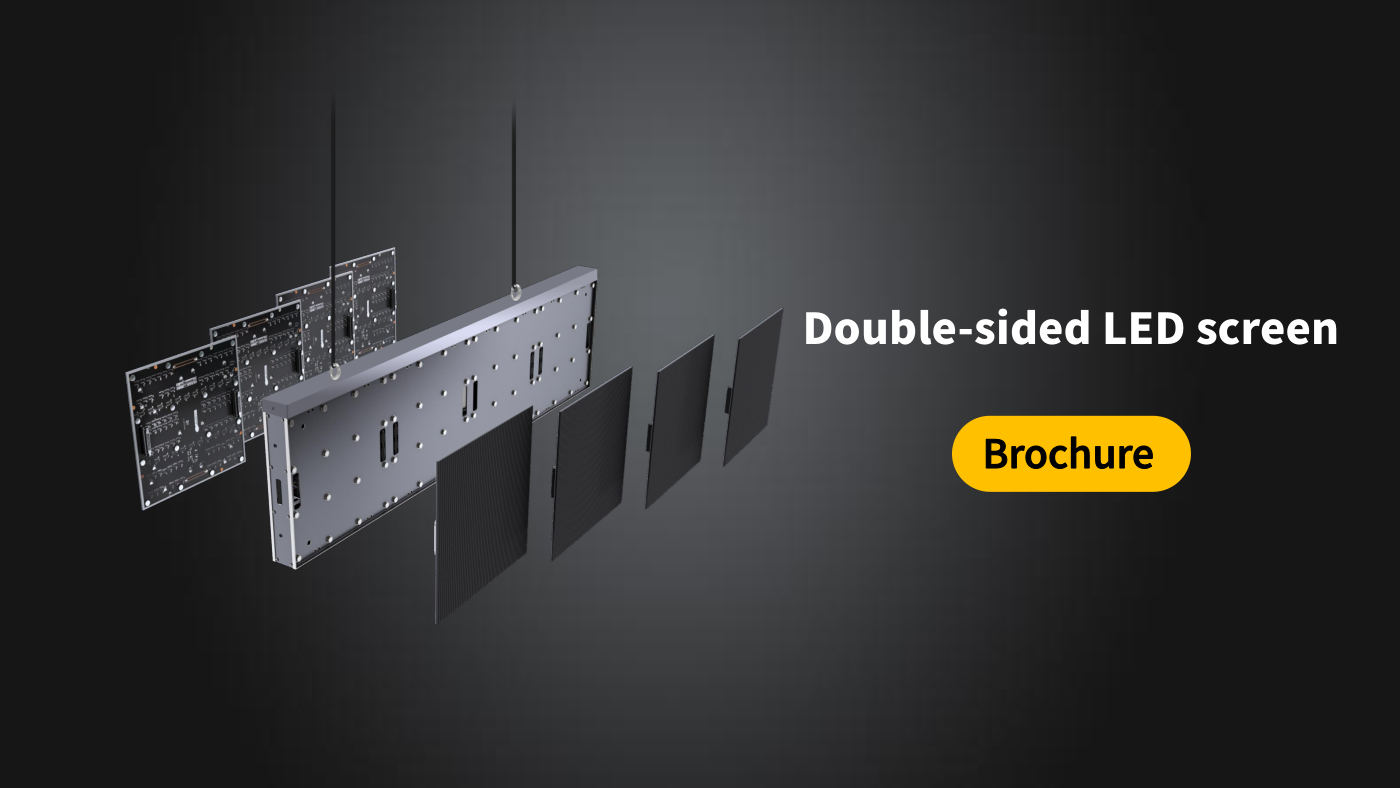

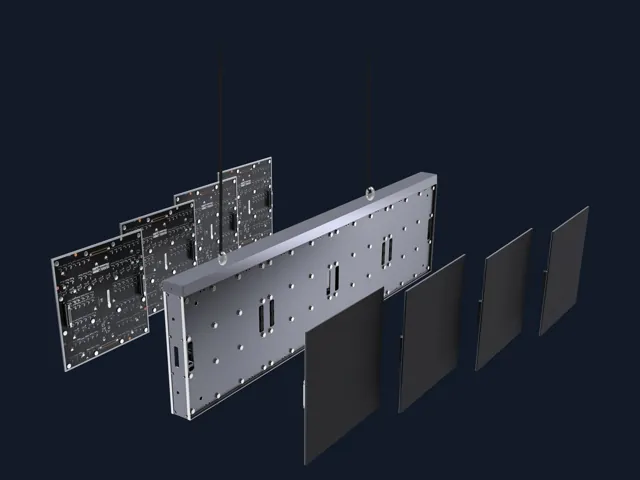

Wireless magnetic modules

Modules adsorb onto multiple magnetic columns with hot-swap, hard-wired connections — no cables inside.

5V low-failure design

Low-voltage line architecture with extremely low failure rate for always-on retail signage.

All-aluminum, fanless

Fast heat dissipation in a slim 54mm body that hangs cleanly in windows and corridors.

Datasheet

Technical specifications

Factory datasheet values. Need the full PDF or a custom configuration? Request it here.

Pixel Pitch	P1.25	P1.5625	P1.95	P2.5	P3.91
LED Type	SMD1010 (GOB)	SMD1212 (GOB)	SMD1515	SMD1515	SMD1515
Pixel Density (dots/m²)	640,000	409,600	262,144	160,000	65,536
Panel Sizes (mm)	1000/750/500 ×250×54	1000/750/500 ×250×54	1000/750/500 ×250×54	1000/750/500 ×250×54	1000/750/500 ×250×54
Maintenance	Front	Front	Front	Front	Front
Brightness (nits)	600	600	800	800	1000
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Grey Scale	14/16bit	14/16bit	14/16bit	14/16bit	14/16bit
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Max / Avg Power (W/m²)	650 / 100–200	650 / 100–200	650 / 100–200	650 / 100–200	650 / 100–200
IP Rating	IP31	IP31	IP31	IP31	IP31
