X3 Series Indoor Small Pixel Pitch LED Display

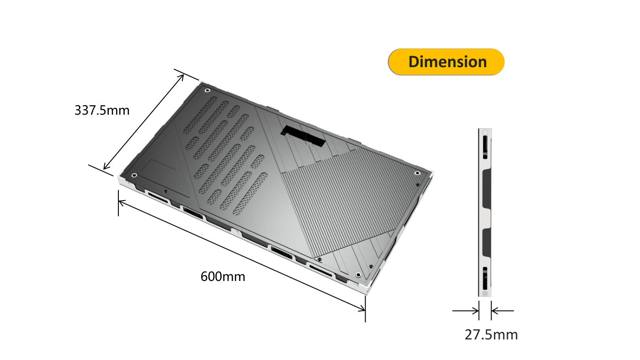

The workhorse fine-pitch wall: 600×337.5mm die-cast aluminum cabinet, only 27.5mm thin and 4.5kg light.
Why teams choose the X3 Series

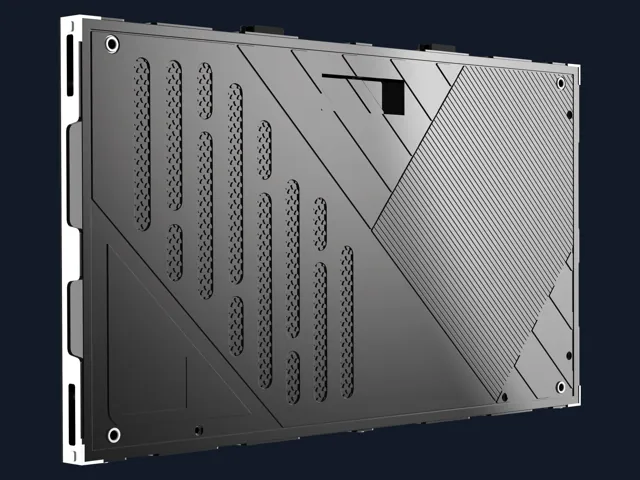

The X3 Series is our best-selling indoor small pixel pitch LED display, engineered for control rooms, broadcast studios, conference centers and premium retail environments. Each 600×337.5mm cabinet is CNC-machined from die-cast aluminum with flatness within 0.1mm, weighs just 4.5kg and is only 27.5mm thin, so a full video wall installs fast on walls with almost no depth. Cabinets splice seamlessly into 2K, 4K, 8K and even 16K screens, and the fanless design keeps meeting rooms completely silent. Full front maintenance means the wall can sit flush against the surface — no service corridor needed. Optional dual receiving cards and dual power supplies keep the screen alive even if one path fails, which is why the X3 is trusted in mission-critical monitoring rooms.
Seamless splicing to 16K
Die-cast aluminum cabinets with ≤0.1mm flatness splice into 2K / 4K / 8K / 16K ultra-high-definition walls with no visible seams.
Full front maintenance
Modules, power and receiving cards are all serviced from the front — install flush to the wall with zero rear access space.
HDR image engine
Wide color gamut processing, 10000:1 contrast, 16bit grey scale and 3840Hz refresh deliver camera-ready pictures with no scan lines.

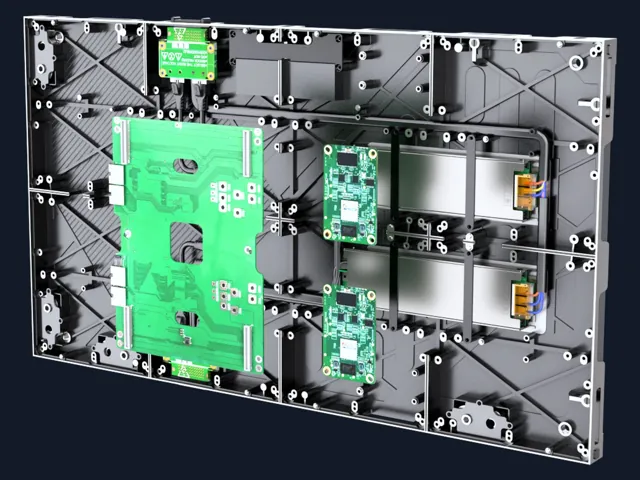

Dual backup system
Optional dual power supply + dual receiving card configuration keeps signal and power uninterrupted for mission-critical rooms.
Creative splicing
Supports right angles, arcs and custom shapes to match architectural features.
Silent & light
Fanless cooling, 4.5kg cabinets and hidden handles make installation quick and operation completely silent.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P0.9375 | P1.25 | P1.5625 | P1.875 | P2.5 |
|---|---|---|---|---|---|
| LED Type | COB | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 |
| Pixel Density (dots/m²) | 1,137,778 | 640,000 | 409,600 | 284,444 | 160,000 |
| Cabinet Size (mm) | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 |
| Cabinet Resolution | 640×360 | 480×270 | 384×216 | 320×180 | 240×135 |
| Cabinet Weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance | Front | Front | Front | Front | Front |
| Brightness (nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Max / Avg Power (W/m²) | 350 / 100 | 350 / 100 | 350 / 100 | 350 / 100 | 350 / 100 |
| IP Rating | IP31 | IP31 | IP31 | IP31 | IP31 |
Typical applications
- Control & command centers
- Broadcast studios
- Conference rooms
- Museums & exhibition halls
- Shopping centers
- High-end retail
Quote the X3 Series for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
