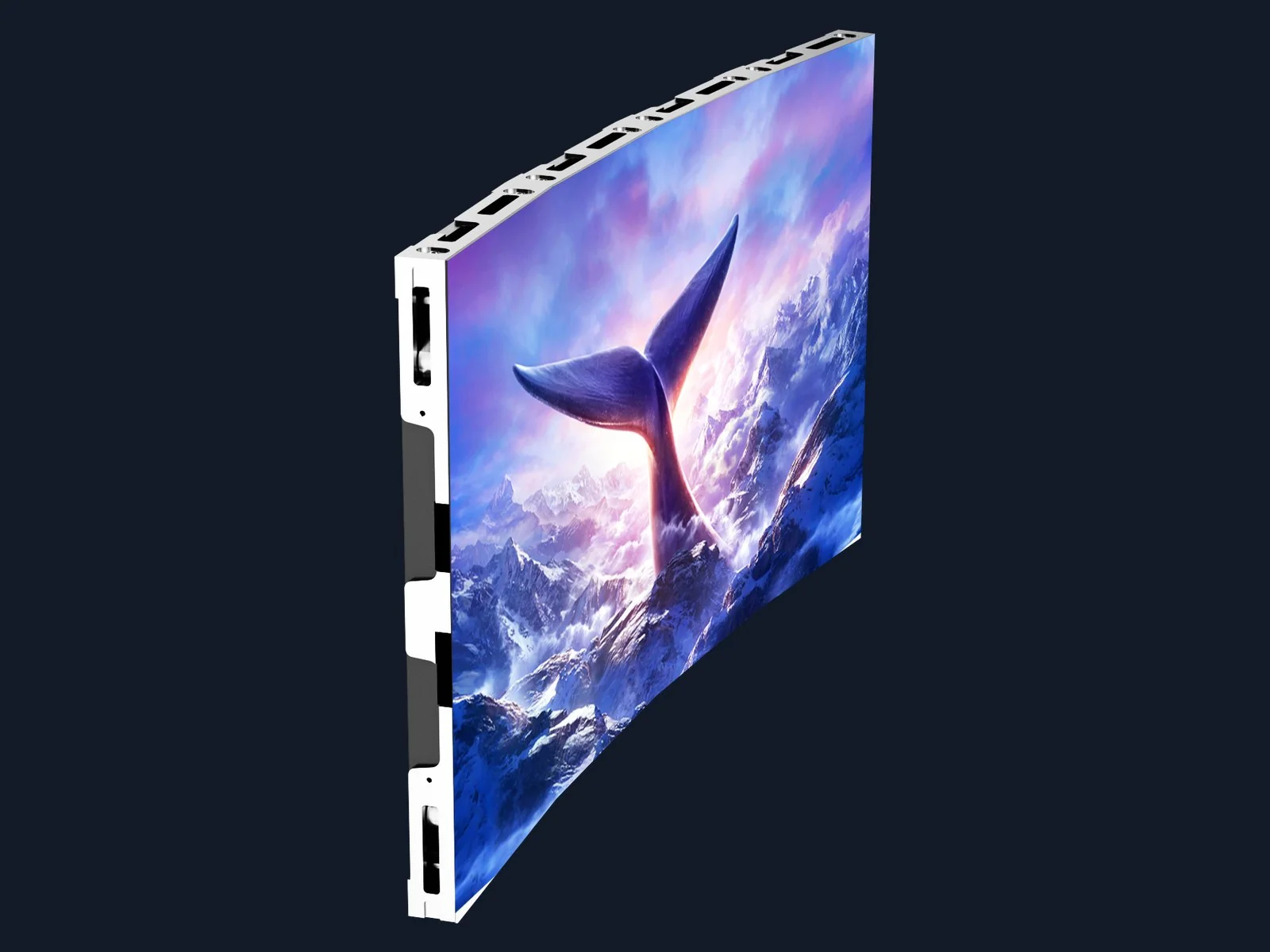

X3-Curve Series Curved Fine Pitch LED Display
Fine pitch that bends: inner and outer arc splicing plus 150mm mini cabinets for truly custom shapes.
Why teams choose the X3-Curve Series
The X3-Curve Series takes everything the X3 fine-pitch platform does well — die-cast aluminum precision, front maintenance, HDR image quality — and adds true curved-wall capability. Cabinets support both inner and outer arc splicing, and a unique 150mm small cabinet lets integrators fill non-standard dimensions or build tight-radius curves that regular 600mm cabinets cannot follow. Four 150mm cabinets combine into a standard 600mm unit, so flat and curved sections mix freely in one screen. With dual power and dual receiving card backup available, the X3-Curve is the go-to choice for immersive showrooms, curved command walls, columns and architectural installations.

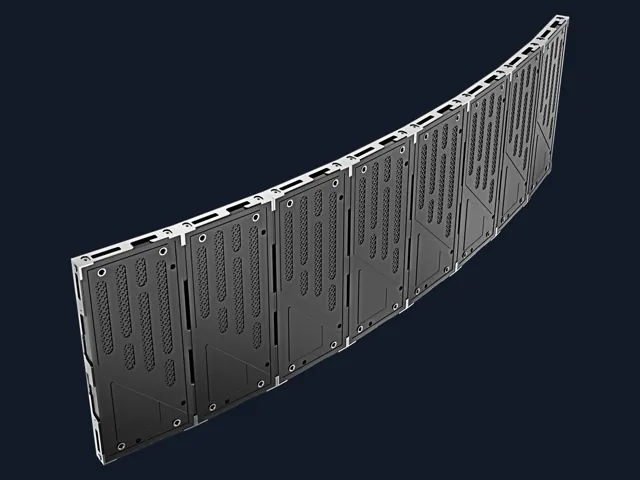

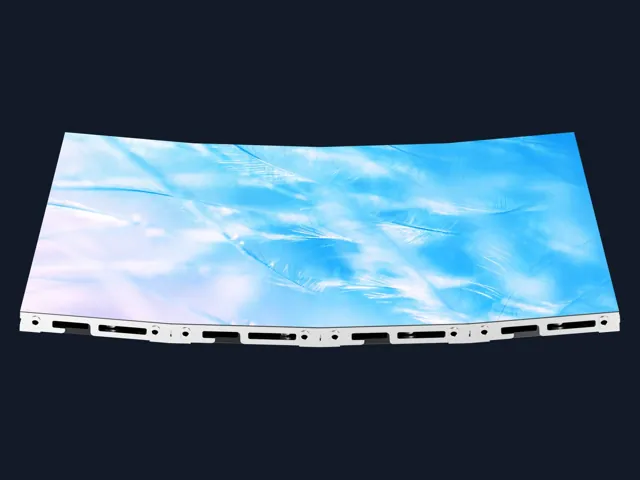

Curve-shape splicing
Supports inner and outer arc splicing to create concave, convex and wave-shaped screens.

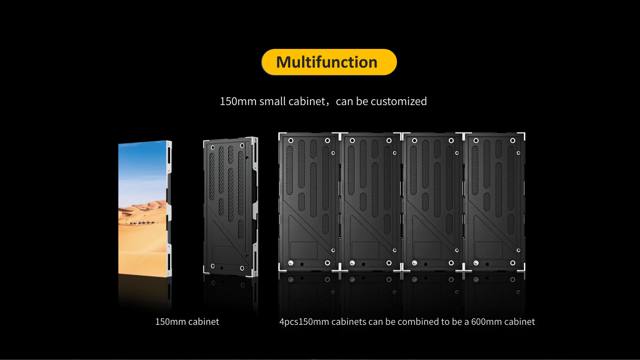

150mm mini cabinet
Small cabinets flexibly supplement screen dimensions — hit the exact size the project drawing demands.
HDR & wide gamut
Professional color management, 10000:1 contrast and 16bit grey scale render rich, natural color transitions.
Power & data backup
Dual power supply and dual receiving card options keep the show running with zero interruption.
Full front maintenance
Both the standard and 150mm cabinets service entirely from the front.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P0.9375 | P1.25 | P1.5625 | P1.875 |
|---|---|---|---|---|
| LED Type | Mini 4-in-1 | SMD1010 | SMD1010/1212 | SMD1010/1515 |
| Pixel Density (dots/m²) | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Cabinet Size (mm) | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 |
| Cabinet Resolution | 640×360 | 480×270 | 384×216 | 320×180 |
| Cabinet Weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance | Front | Front | Front | Front |
| Brightness (nits) | ≥600 | ≥600 | ≥600 | ≥600 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Max / Avg Power (W/m²) | 350 / 100 | 350 / 100 | 350 / 100 | 350 / 100 |
| IP Rating | IP31 | IP31 | IP31 | IP31 |
Typical applications
- Immersive showrooms
- Curved command walls
- Columns & pillars
- Science museums
- Brand experience centers
Quote the X3-Curve Series for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
