ES Series High-End Outdoor LED Display
The premium outdoor platform: 6500-nit brightness, energy-saving drive, and a cabinet that doubles as a stadium screen.
Why teams choose the ES Series

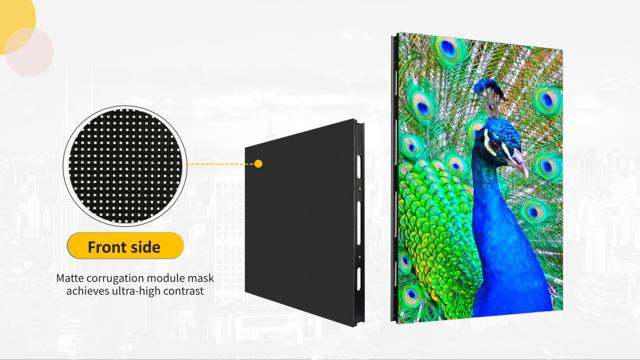

The ES Series is our flagship outdoor fixed display, built on lightweight 800×900mm and 800×1200mm aluminum profile cabinets of 17.5kg and 22.5kg. Brightness up to 6500 nits keeps content vivid in direct sunlight, while energy-saving design holds average consumption to 200–300W/m² — far below the ~450W of regular outdoor product. The matte corrugated mask lifts contrast, IP65 sealing front and back survives storms, and hot-swappable hard-connected modules give true full-front maintenance. Add the soft mask, folding stand and protective top rubber kit and the same cabinet becomes a stadium perimeter screen — one inventory, two businesses. From P3.125 close-viewing street level media to P10 highway billboards, the ES covers the full outdoor range.
6500 nits, energy saving
Sunlight-readable brightness with average power of only 200–300W/m² — max 780W vs 1000W for regular products.
Stadium conversion kit
ES cabinet + soft mask + folding stand + soft top rubber converts to a sports perimeter screen.
IP65 both sides
Waterproof front and back for harsh outdoor environments, fanless silent operation.

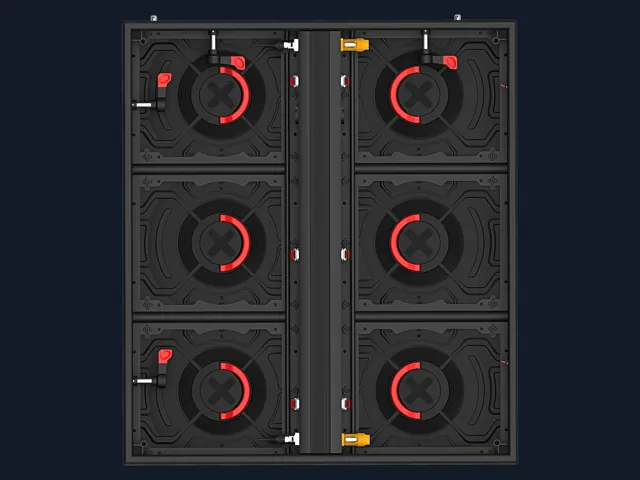

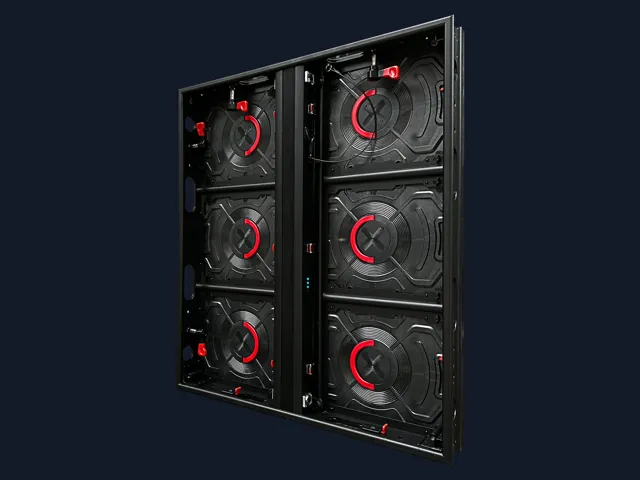

Light aluminum cabinets
17.5kg (800×900) and 22.5kg (800×1200) cabinets cut structure and freight costs.
Hot-swap full front access
Hard connection supports complete front maintenance for wall-flush installation.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P3.125 | P4.16 | P5 | P6.25 | P8.33 | P10 |
|---|---|---|---|---|---|---|
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density (dots/m²) | 102,400 | 57,600 | 40,000 | 25,600 | 14,400 | 10,000 |
| Cabinet Size (mm) | 800×900 / 800×1200 | 800×900 / 800×1200 | 800×900 / 800×1200 | 800×900 / 800×1200 | 800×900 / 800×1200 | 800×900 / 800×1200 |
| Cabinet Weight (kg) | 17.5 / 22.5 | 17.5 / 22.5 | 17.5 / 22.5 | 17.5 / 22.5 | 17.5 / 22.5 | 17.5 / 22.5 |
| Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Brightness (nits) | 5000 | 6500 | 6500 | 6500 | 6500 | 6500 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Flatness (mm) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Viewing Angle (H/V) | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Max / Avg Power (W/m²) | 780 / 200–300 | 780 / 200–300 | 780 / 200–300 | 780 / 200–300 | 780 / 200–300 | 780 / 200–300 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Typical applications
- Premium outdoor advertising
- Stadium perimeters
- Shopping mall exteriors
- Gas stations & drive-throughs
- City landmark screens
Quote the ES Series for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
Related products
Ti Series
960×960 aluminum cabinet, up to 69% energy saving, IP65, P4–P10
Energy Saving · IP65 Front & Back · ≥4500 nits View Details →
X3 Series
27.5mm ultra-thin die-cast cabinet, P0.9–P2.5, front maintenance
P0.9 – P2.5 · Front Maintenance · 3840Hz View Details →

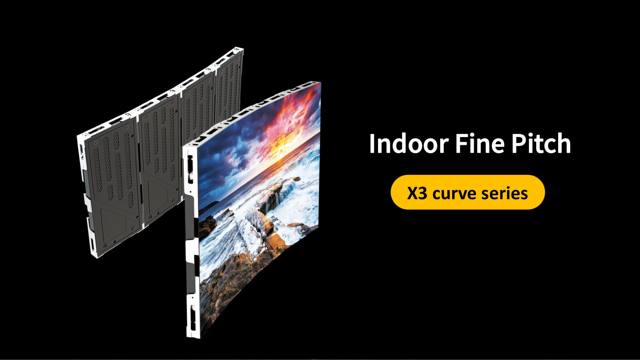

X3-Curve Series
