R Series Indoor Rental LED Screen
The touring standard: 8kg 500×500 cabinets with arc adjustment, smart monitoring and front/rear service.
Why teams choose the R Series

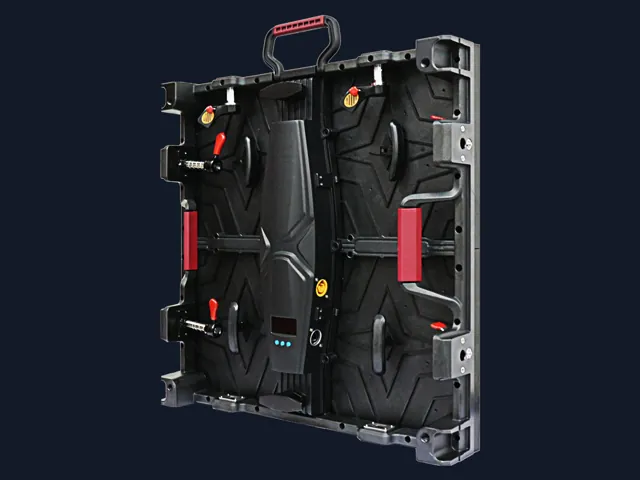

The R Series is a professional indoor rental platform built for the daily grind of staging companies: rig, show, de-rig, truck, repeat. Each 500×500×84.5mm die-cast aluminum cabinet weighs 8kg, carries multiple handles, corner protection and CNC-machined ≤0.1mm flatness, and locks straight or curved with 15° arc adjustment. A built-in smart LCD panel reports temperature, voltage and working hours at a glance, so technicians spot problems before the show does. The high-integration power box is plug-and-play hot-swappable and services from front or rear. From P1.5625 GOB-protected close-view product to P3.91 big stage canvases, the R Series covers indoor events end to end.
Smart monitoring LCD
On-cabinet LCD shows temperature, voltage, total and working time — instant health checks during setup.
Arc-shape adjustable
15° angle adjustment builds flat, concave and convex screens from the same inventory.
Rental-grade structure
Die-cast aluminum, multi-handle, corner protection and buckle-lock power boxes survive touring life.
Hot-swap power box
HUB connection with integrated power box — plug and play, front or rear replacement in seconds.
Color enhancement
Unique color enhancement technology keeps every hue clearly visible and realistic on camera.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P1.5625 | P1.95 | P2.5 | P2.976 | P3.91 |
|---|---|---|---|---|---|
| LED Type | SMD1212 (GOB) | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density (dots/m²) | 409,600 | 262,144 | 160,000 | 112,896 | 65,536 |
| Cabinet Size (mm) | 500×500×84.5 | 500×500×84.5 | 500×500×84.5 | 500×500(×1000)×84.5 | 500×500(×1000)×84.5 |
| Cabinet Weight (kg) | 8 | 8 | 8 | 8 / 14.5 | 8 / 14.5 |
| Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Brightness (nits) | ≥600 | ≥800 | ≥800 | ≥800 | ≥1000 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Viewing Distance | 2–50m | 2–50m | 3–50m | 3–100m | 4–100m |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Max / Avg Power (W/m²) | 600 / 200–300 | 600 / 200–300 | 600 / 200–300 | 600 / 200–300 | 600 / 200–300 |
| IP Rating | IP31 | IP31 | IP31 | IP31 | IP31 |
Typical applications
- Concerts & touring
- Corporate events
- Exhibition booths
- Weddings & galas
- TV show stages
Quote the R Series for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
