Why teams choose the XR Series

Virtual production and broadcast put LED walls in front of professional cameras, where ordinary 3840Hz panels show scan lines, flicker and moiré. The XR Series is engineered for exactly this environment: 7680Hz refresh rate, 60/120Hz frame frequency support, ≥1500-nit calibrated brightness and 16bit grey scale deliver clean in-camera backgrounds for film sets, XR stages and esports studios. The platform inherits everything rental crews love about our R Series — 8kg die-cast 500×500 cabinets, ±15° arc adjustment, smart monitoring LCD, hot-swap power boxes and front/rear service — so the same wall shoots a film on Monday and plays a product launch on Friday.

7680Hz camera-grade refresh

Double the standard refresh rate removes scan lines and flicker in front of professional cameras.

120Hz frame frequency

60/120Hz support syncs with high-frame-rate cinema and broadcast workflows.

Calibrated ≥1500 nits

Higher brightness headroom for in-camera lighting and HDR virtual production plates.

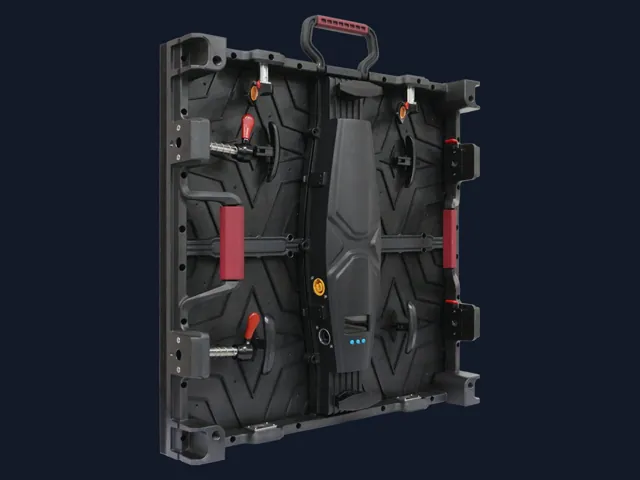

Rental DNA

8kg cabinets, arc adjustment, smart LCD monitoring and hot-swap power — tour-ready between shoots.

Datasheet

Technical specifications

Factory datasheet values. Need the full PDF or a custom configuration? Request it here.

Pixel Pitch	P1.95	P2.315	P2.604
LED Type	SMD1515	SMD1515	SMD1515
Pixel Density (dots/m²)	262,144	186,624	147,456
Cabinet Size (mm)	500×500×84.5	500×500×84.5	500×500×84.5
Cabinet Weight (kg)	8	8	8
Maintenance	Front / Rear	Front / Rear	Front / Rear
Brightness (nits)	≥1500	≥1500	≥1500
Frame Frequency (Hz)	60 / 120	60 / 120	60 / 120
Refresh Rate (Hz)	7680	7680	7680
Grey Scale	16bit	16bit	16bit
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°
Max / Avg Power (W/m²)	920 / 200–300	920 / 200–300	920 / 200–300
IP Rating	IP31	IP31	IP31
