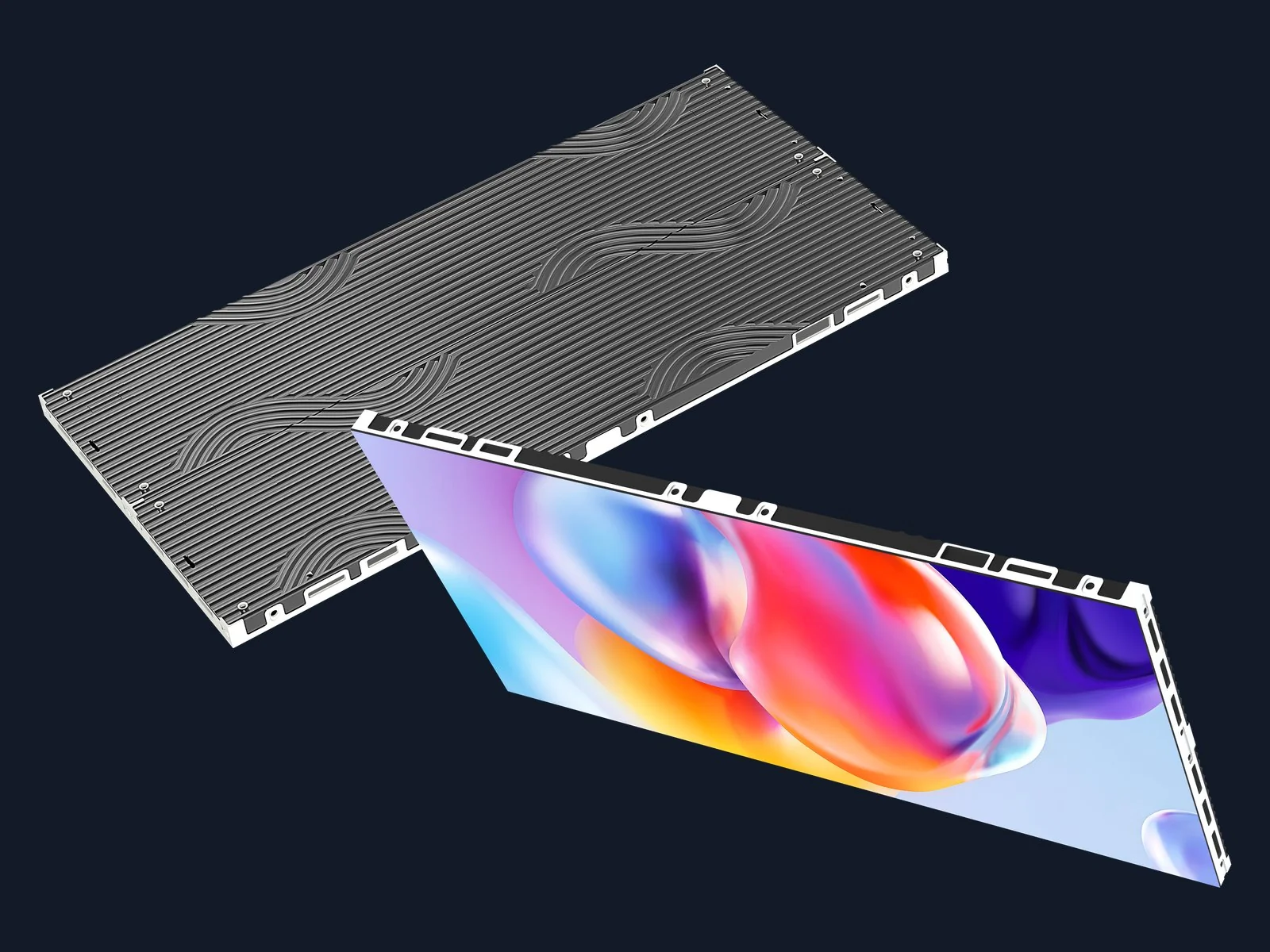

T3-PRO Series Indoor Fixed LED Display
Four cabinet sizes, 33mm thin, magnetic front-service modules — the most flexible indoor fixed platform we build.
Why teams choose the T3-PRO Series
The T3-PRO Series is a die-cast aluminum indoor fixed display designed around installation flexibility. Four cabinet sizes — 500×250, 750×250, 1000×250 and 1000×500mm — splice freely in both directions, so the screen fits the wall instead of the wall fitting the screen. The whole cabinet is only 33mm thick and as light as 3.0kg, with hard-wired module connections and magnetic self-locating modules that snap into place and never work loose. Modules rotate 90° without color shift for column and right-angle creative builds. GOB-protected LED options add impact and moisture resistance for high-traffic retail. From P1.25 boardroom detail to P3.91 large-format advertising, one platform covers it.

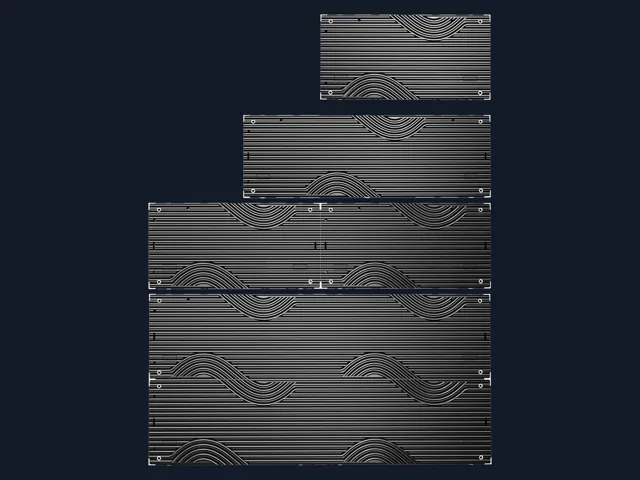

Four splice-anywhere sizes
500×250 / 750×250 / 1000×250 / 1000×500mm cabinets combine horizontally and vertically to hit exact wall dimensions.
Magnetic module mounting
Modules self-align and lock magnetically — hard-wired to the cabinet, no cables, no falling off.
90° rotatable modules
Innovative bead layout keeps viewing angle and color identical when modules rotate — build columns and right angles freely.

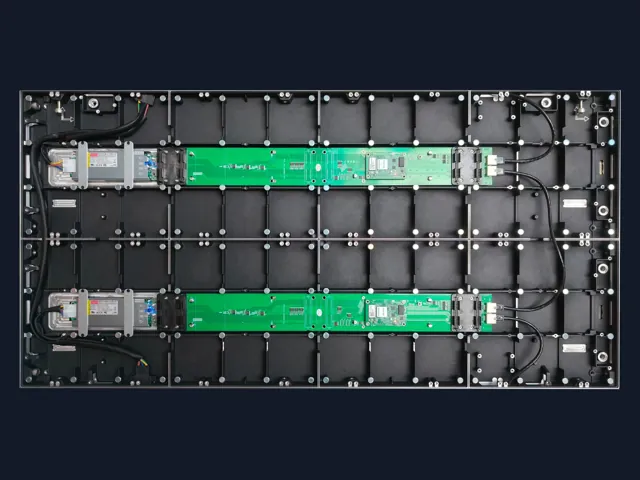

Eagle-hook lock cabinet
High-precision integrated die-casting with positioning columns and locks that cannot loosen over time.
Front maintenance, 33mm
Full pre-maintenance with zero rear space, in a cabinet only 33mm thick.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P1.25 | P1.5625 | P1.95 | P2.5 | P3.91 |
|---|---|---|---|---|---|
| LED Type | SMD1010 (GOB) | SMD1212 (GOB) | SMD1515 (GOB) | SMD1515 | SMD2020 |
| Pixel Density (dots/m²) | 640,000 | 409,600 | 262,144 | 160,000 | 65,536 |
| Cabinet Sizes (mm) | 4 sizes ×33 deep | 4 sizes ×33 deep | 4 sizes ×33 deep | 4 sizes ×33 deep | 4 sizes ×33 deep |
| Cabinet Weight (kg) | 3.0 – 9.8 | 3.0 – 9.8 | 3.0 – 9.8 | 3.0 – 9.8 | 3.0 – 9.8 |
| Maintenance | Front | Front | Front | Front | Front |
| Brightness (nits) | 600 | 600 | 800 | 800 | 800 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 14/16bit | 14/16bit | 14/16bit | 14/16bit | 14/16bit |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Max / Avg Power (W/m²) | 350 / 100–200 | 350 / 100–200 | 350 / 100–200 | 350 / 100–200 | 350 / 100–200 |
| IP Rating | IP31 | IP31 | IP31 | IP31 | IP31 |
Typical applications
- Retail chain stores
- Showrooms
- Corporate lobbies
- Airports & stations
- Cinemas
Quote the T3-PRO Series for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
