Studio · Indoor

Video production studio LED Display Project

Curved GOB backdrop wall at 7680 Hz for camera work in Doksan-dong, Seoul, South Korea.

Video production studio LED display installation in Doksan-dong, Seoul, South Korea

LocationDoksan-dong, Seoul, South Korea

ApplicationStudio

EnvironmentIndoor

Pixel pitchP1.86

ProductX3 Series

Project challenge

A backdrop wall that photographs badly is worthless to a studio. Standard refresh rates band and flicker on camera, and a flat wall behind a performer reads as a screen rather than as a location.

MCVISUAL solution

A curved P1.86 wall was built on GOB modules running at 7680 Hz, so the sensor sees a clean frame at normal shutter speeds, and the arc wraps far enough around the shooting area to fill the frame at wide angles.

Installed result

The studio shoots music video and commercial work against the wall directly, changing location by changing content, and the footage comes off camera without scan lines or moiré across the background.

Planning a similar studio project? Share the screen dimensions, viewing distance, installation environment and target schedule. Our engineering team will recommend the pixel pitch, cabinet platform, control system and service access required for the site.

View X3 Series specifications

How this one went in

Photographed on site as the screen was built, commissioned and handed over.

The curved wall running a drive plate in the darkened studio. Content changes the location; the physical set does not move, which is the reason a studio buys a wall instead of building flats.

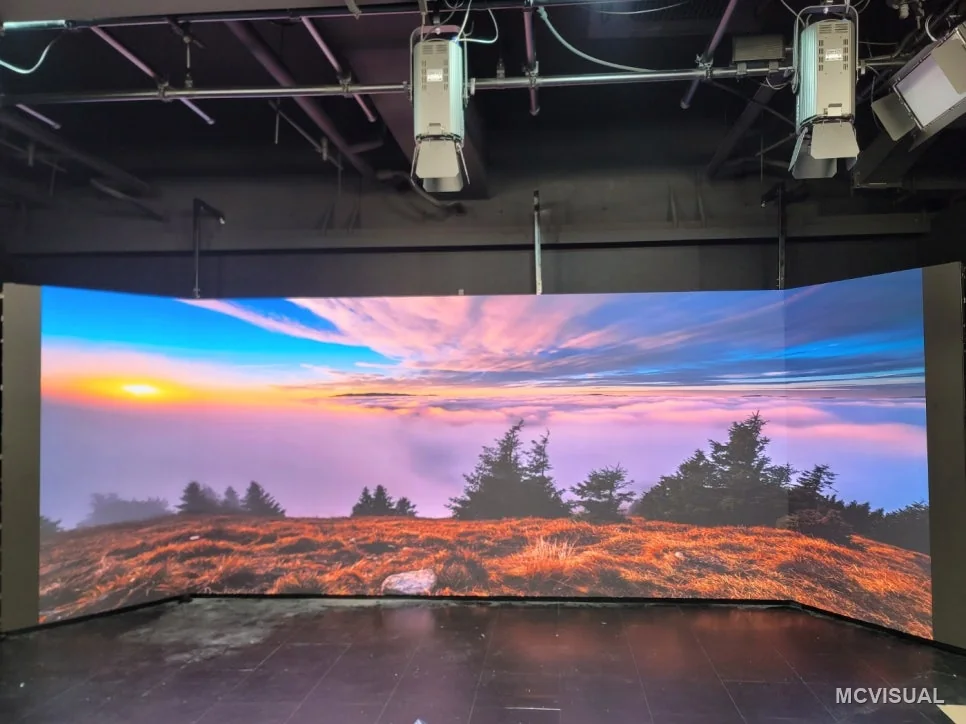

Video production studio, Doksan-dong, Seoul, South Korea — The finished curve lit for a shoot. The arc wraps far enough around the shooting area to fill a wide frame, so the camer — The finished curve lit for a shoot. The arc wraps far enough around the shooting area to fill a wide frame, so the camera sees a location rather than a screen with room edges beside it.

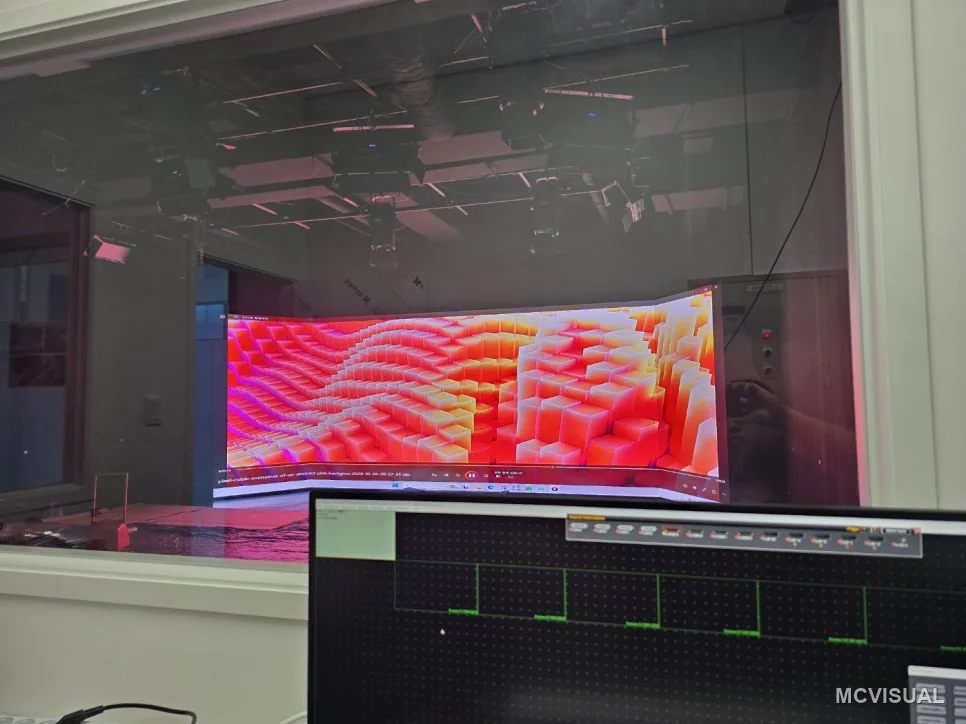

Video production studio, Doksan-dong, Seoul, South Korea — In use on a music video. 7680 Hz refresh is what makes this possible at normal shutter speeds — below that the sensor pi — In use on a music video. 7680 Hz refresh is what makes this possible at normal shutter speeds — below that the sensor picks up banding the eye never sees.

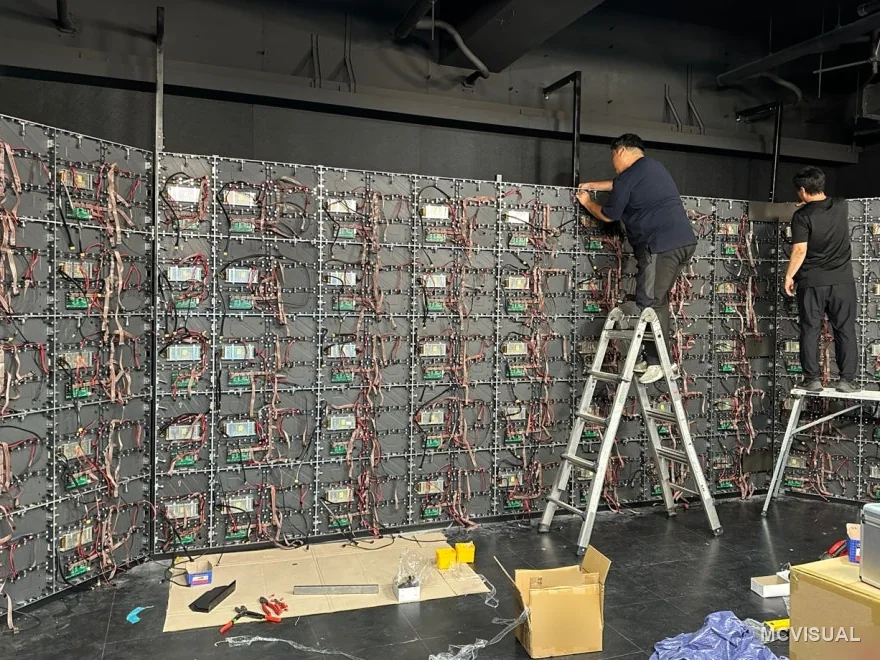

Video production studio, Doksan-dong, Seoul, South Korea — Cabinet backs during the build. Power and data runs are dressed before the modules go on, because on a curve there is no — Cabinet backs during the build. Power and data runs are dressed before the modules go on, because on a curve there is no way back in from the front once the face is closed.

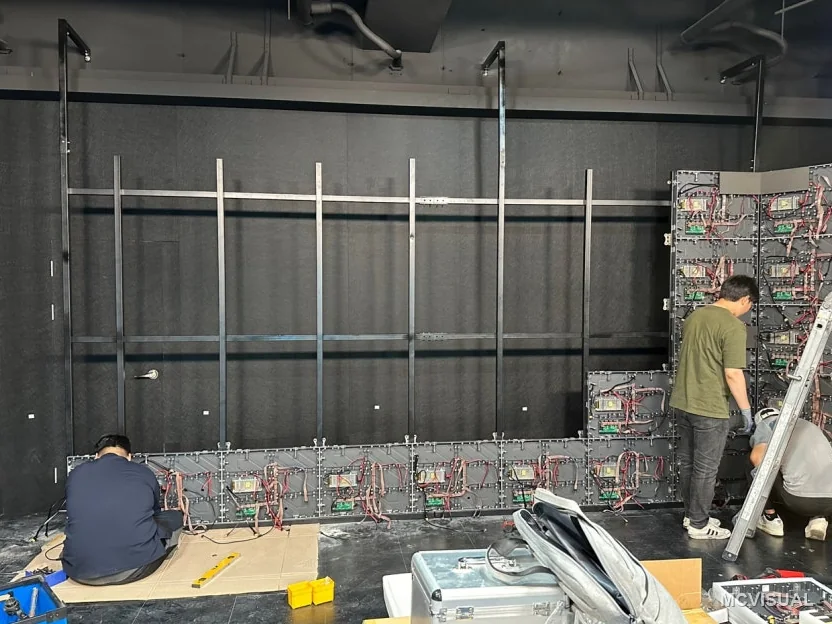

Video production studio, Doksan-dong, Seoul, South Korea — The support frame before modules are hung. On a curved wall the frame is the tolerance: modules follow whatever it does, — The support frame before modules are hung. On a curved wall the frame is the tolerance: modules follow whatever it does, including its mistakes.
