Flexible LED Module (Soft Module)
LED that bends to the architecture: silicone-bodied magnetic modules wrap cylinders, curves and spheres.
Why teams choose the F Series Flexible Module

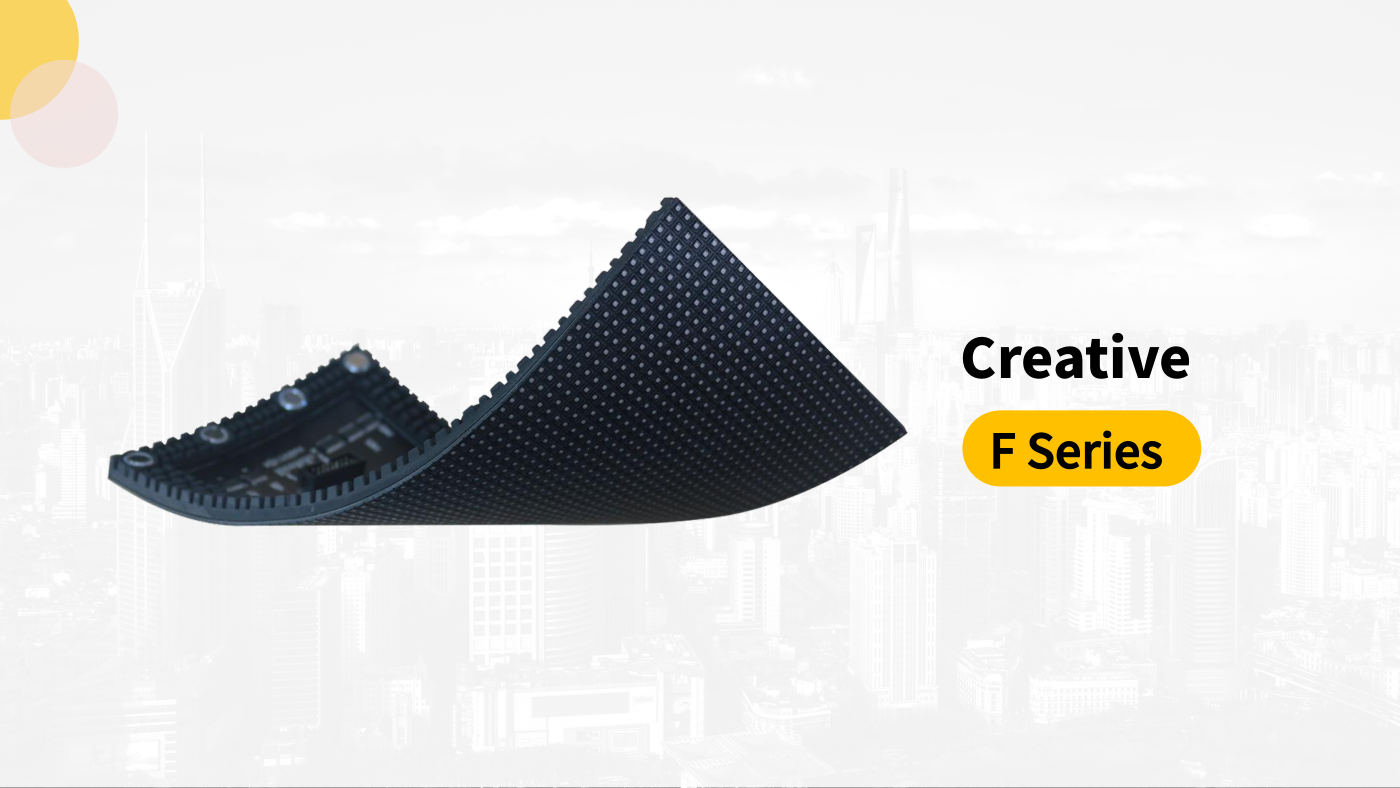

The F Series flexible module frees LED from the flat rectangle. A silicone mask and silicone bottom shell give each 240×120mm module genuine compression and twist capability — it wraps cylinders with an inner diameter as tight as 30.5cm, follows waves, curves and spherical surfaces, and holds a non-degumming bond over time. Strong magnetic mounting snaps modules onto the structure, keeping splicing flatness within 0.1mm with single-point maintenance, so curved surfaces stay smooth and bump-free. Available from P1.25 to P2.5 with 700-nit brightness and 3840Hz refresh, the F Series is how columns in malls, hotels and airports become premium media — fully customized to the drawing you send us.
True flexibility

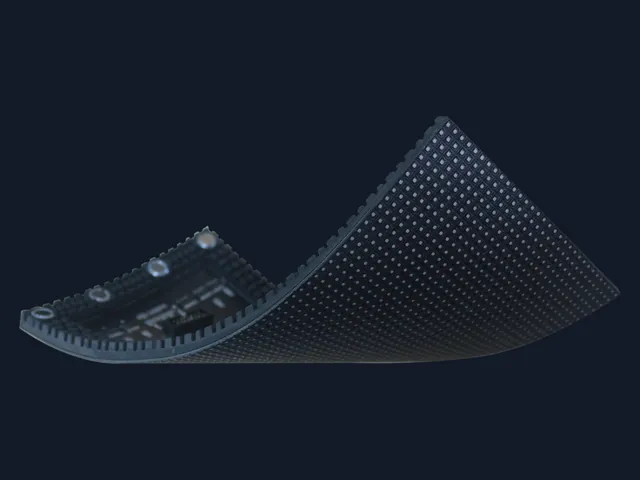

High-strength compression and twisting lets modules wrap columns to ⌀30.5cm and follow spheres and waves.
Magnetic quick mount

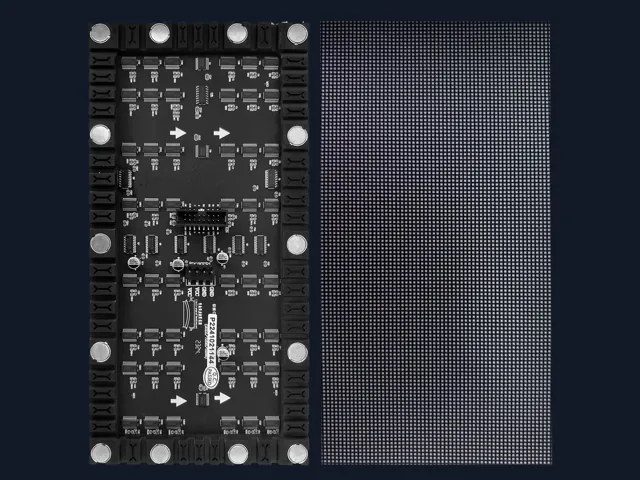

Strong magnetic adsorption installs fast, holds flat and services from a single point.
Silicone construction
Silicone mask and bottom shell resist degumming and keep the surface uniform over years.
Fully custom builds

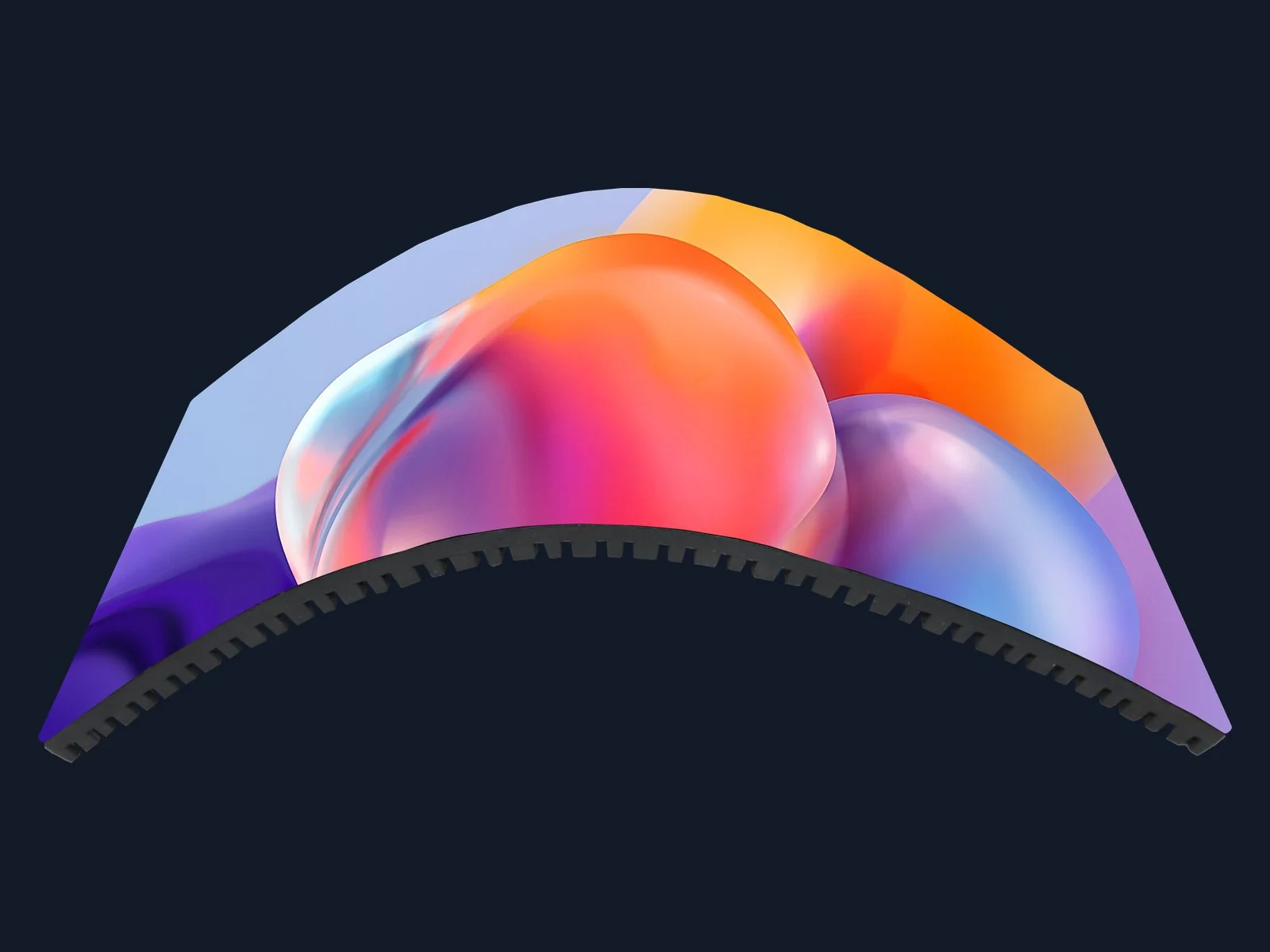

Cylinders, arcs, ribbons and spheres assembled to your dimensions — send the drawing, get the screen.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P1.25 | P1.5625 | P1.875 | P2 | P2.5 |
|---|---|---|---|---|---|
| LED Type | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |

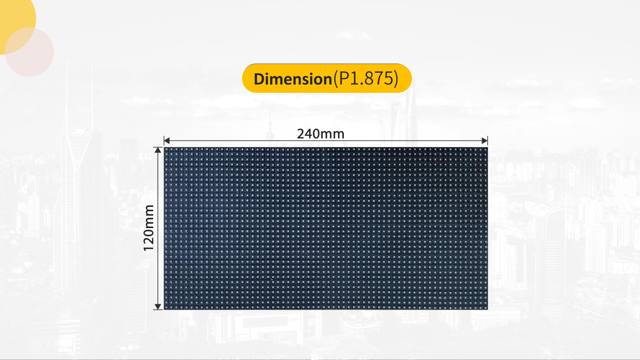

| Module Size (mm) | 240×120 | 240×120 | 240×120 | 240×120 | 240×120 |
| Module Resolution | 192×96 | 152×72 | 128×64 | 120×60 | 96×48 |
| Cabinet | Customized | Customized | Customized | Customized | Customized |
| Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Brightness (nits) | 700 | 700 | 700 | 700 | 700 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 14bit | 14bit | 14bit | 14bit | 14bit |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Max / Avg Power (W/m²) | 600 / 80–150 | 600 / 80–150 | 600 / 80–150 | 600 / 80–150 | 600 / 80–150 |
| IP Rating | IP31 | IP31 | IP31 | IP31 | IP31 |
Typical applications
- Shopping mall columns
- Hotel lobbies
- Airport architecture
- Brand flagship stores
- Curved ceilings & ribbons
Quote the F Series Flexible Module for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
