Why teams choose the Transparent Series

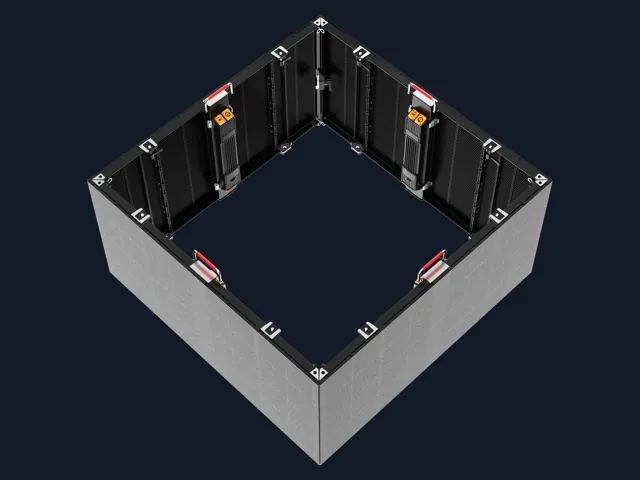

The Transparent Series turns glass facades, curtain walls and shop windows into media surfaces without blocking light or sightlines. A refined strip structure achieves 70–85% transparency, so interiors stay daylit and the architecture stays visible while content plays. Each 1000×500×32mm die-cast cabinet weighs only 8kg — light enough for glass-adjacent structures — and the open design cools by natural convection with no fans. IP65 protection handles outdoor mounting, 1500–2500-nit brightness reads through daylight, and modules and light strips disassemble independently for quick maintenance. Sizes are customizable, and quick-lock buckles splice cabinets into flat, square or arc configurations across entire building faces.

70–85% transparency

Simplified strip structure lets light and views pass through — no dark glass wall when content is off.

8kg ultra-light cabinets

Minimal load on glass curtain structures; hoisting and seat mounting supported.

Fanless convection cooling

High ventilation design dissipates heat naturally — silent and low-maintenance.

IP65 outdoor rating

Sealed for outdoor-facing installation through rain, dust and sun.

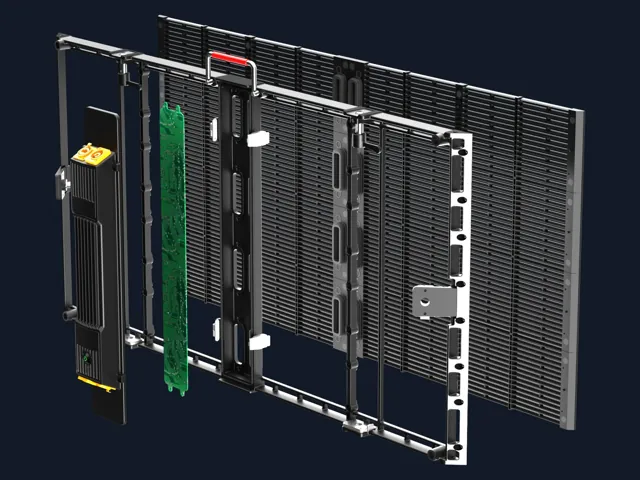

Independent strip service

Modules and LED strips disassemble separately for fast on-glass maintenance.

Datasheet

Technical specifications

Factory datasheet values. Need the full PDF or a custom configuration? Request it here.

Model	P3.91 (×7.81)
LED Type	SMD1921
Pixel Density (dots/m²)	32,768
Transparency	70% – 85%

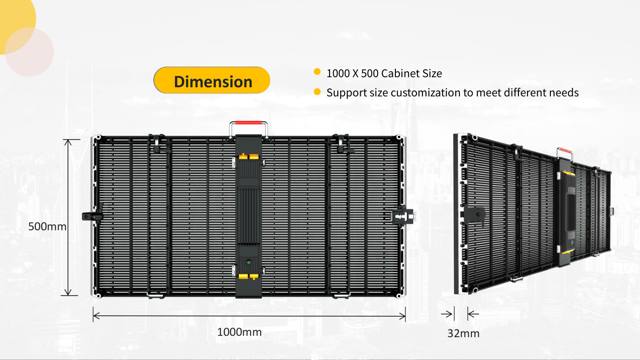

Cabinet Size (mm)	1000×500×32 (customizable)
Cabinet Weight (kg)	8
Brightness (nits)	1500–2500
Refresh Rate (Hz)	3840
Viewing Distance	4–50m
Viewing Angle (H/V)	160°/160°
Max / Avg Power (W/m²)	800 / 150–250
Maintenance	Front / Rear
IP Rating	IP65
