Interactive LED Floor Screen
A screen you can drive a car onto: 2000kg/m² load bearing, GOB armor, and up to 256 interactive sensing points per m².
Why teams choose the LED Dance Floor

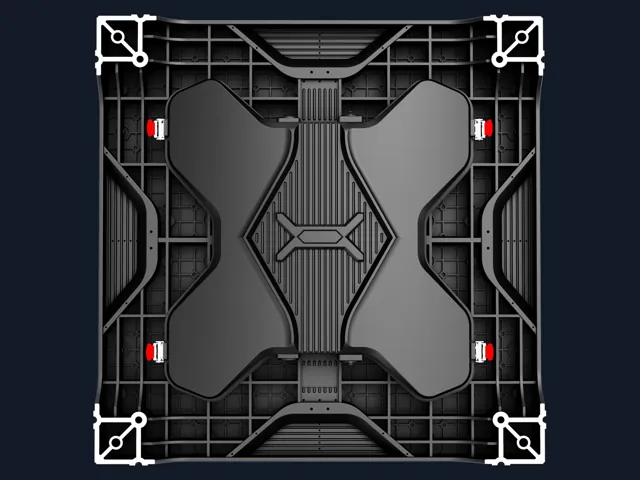

The LED Dance Floor makes the ground itself a display. High-strength custom die-cast aluminum cabinets bear 2000kg per square meter — cars included — while GOB surface technology armors the LEDs against impact, moisture, abrasion and heel strikes, and wipes clean like tile. Built-in control chips with 128 or 256 sensing points per square meter track footsteps for fluid interactive effects at weddings, retail activations and museum exhibits. The hollow-frame cabinet weighs just 10.8kg, sets up fast on adjustable 15–20mm leveling feet with positioning columns, and magnetic pre-maintenance design lifts modules, power and receiving cards from above — no digging up the floor.
2000kg/m² load bearing
Custom high-strength die-cast structure is fearless of crowds, stages and even vehicles.
Interactive sensing
128 or 256 sensing points per m² with built-in control chips deliver smooth, precise follow-me effects.
GOB armored surface
Anti-collision, moisture-proof, wear-resistant and easy to clean — built for shoes, spills and years of traffic.
Express leveling setup
Adjustable 15–20mm feet and positioning columns lay a flat, seamless floor fast on imperfect ground.
Top-side maintenance
Magnetic pre-maintenance lifts modules, PSU and receiving card from above without disassembling the floor.
Technical specifications
Factory datasheet values. Need the full PDF or a custom configuration? Request it here.
| Pixel Pitch | P1.9 | P2.5 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|---|
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density (dots/m²) | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |

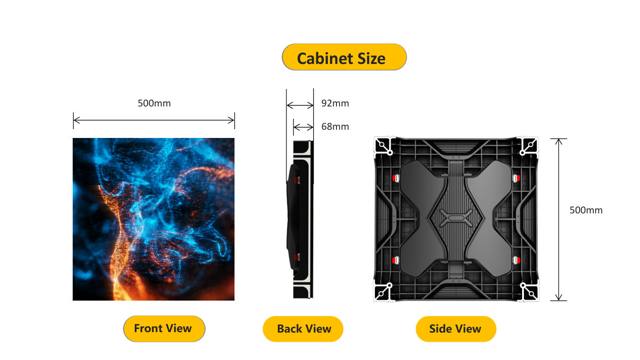

| Cabinet Size (mm) | 500×500×92 | 500×500×92 | 500×500×92 | 500×500×92 | 500×500×92 |
| Cabinet Weight (kg) | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 |
| Maintenance | Top / Front | Top / Front | Top / Front | Top / Front | Top / Front |
| Brightness (nits) | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Max / Avg Power (W/m²) | 800 / 200–300 | 800 / 200–300 | 800 / 200–300 | 800 / 200–300 | 800 / 200–300 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
Typical applications
- Weddings & events
- Showrooms
- Hotels & clubs
- Shopping mall atriums
- Museums & science centers
Quote the LED Dance Floor for your project
Tell us your screen size, pixel pitch or application — an engineer replies with a detailed quotation within 12 hours.
