Stadium Perimeter LED Display (ES Series)

Built on our ES outdoor platform, the Stadium Perimeter system is engineered first for the athletes who collide with it. A new-generation soft faceplate absorbs and disperses impact, EVA anti-collision foam cushions high-speed ball strikes, and silicone protective padding shields players from scrapes — while the soft mask simultaneously cuts ambient reflections for better broadcast contrast. Safety engineering goes further: per-cabinet air circuit breakers isolate electrical faults instantly, fully hidden cable trunking removes trip hazards, and safety-pedal emergency exits let players and staff push through the screen line in seconds. Cabinets rotate 90–180° to follow corners seamlessly, folding ground supports hide away, and the raised base keeps electronics clear of grass and debris. With 6500-nit brightness, 3840Hz refresh and IP65 protection, it meets the demands of televised football, basketball and multi-sport venues.

Typical applications

• Football stadium perimeters
• Basketball arenas
• Athletics venues
• Training grounds
• Multi-sport complexes

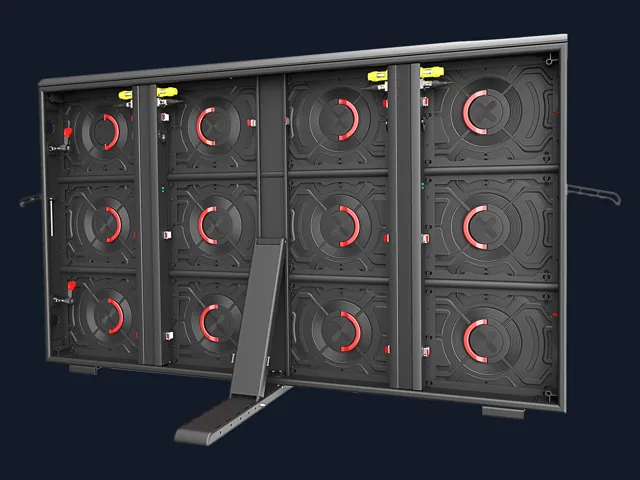

Structure: the folding ground supports set each cabinet at a fixed tilt with expansion-screw fixing; the raised base keeps modules and power boxes clear of grass and irrigation. Control: perimeter ribbons are normally driven over fibre from the control room to sending cards at each ribbon section, with a receiving card in every cabinet, so a fault on one sideline does not take down the whole line; the topology is drawn per venue.

Which pixel pitch should a stadium perimeter LED display use?

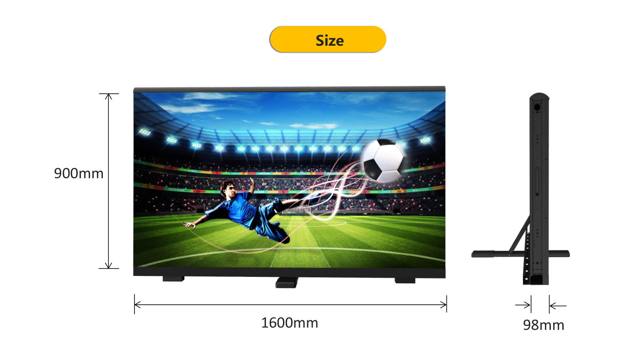

P10 covers most outdoor football and athletics venues because the nearest spectator and the main camera are well beyond 10 m. Choose P8.33 when the main broadcast camera sits within about 30–60 m of the touchline and sponsors want sharper logos on the feed, and P6.25 for basketball or indoor arenas with courtside seating. All three use the same 1600 × 900 mm cabinet, so the choice does not change the structure or the ribbon length.

How many cabinets does a football pitch perimeter need?

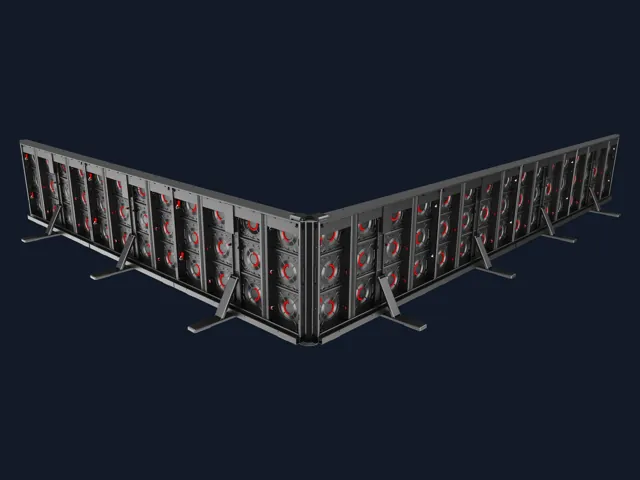

Each cabinet is 1.6 m wide. A single 105 m touchline needs 66 cabinets; a U-shaped ribbon along the touchline and both goal lines (105 + 68 + 68 m) needs about 151. Corners use the 90–180° rotation of the cabinets, so no special corner units are required; add cabinets for advertising boards behind the goals if the venue wants them.

How much power does a perimeter LED ribbon draw?

The ES cabinet is rated 700–800 W/m² maximum and 200–300 W/m² average, and each cabinet is 1.44 m². A 105 m touchline therefore needs distribution sized for roughly 76 kW peak while drawing about 19–29 kW with normal sponsor content. Each cabinet carries its own air circuit breaker, so a fault isolates one cabinet instead of a whole circuit.

What protects players from the LED perimeter?

A soft mask and EVA anti-collision foam on the face, silicone padding on the top and edges, hidden cable trunking so nothing is lying on the grass, and safety-pedal cabinets that fold through to open an emergency route. These are the items a venue safety officer normally asks to see in the drawing before approving the ribbon position.

Is the perimeter display suitable for broadcast cameras?

Yes: 3840 Hz refresh, 16-bit greyscale and 6,500 nits keep sponsor content free of flicker and banding on the feed, and the soft mask reduces reflections from floodlights. Send the camera positions and the venue's broadcast standard and we confirm pitch, brightness curve and tilt angle before production.
